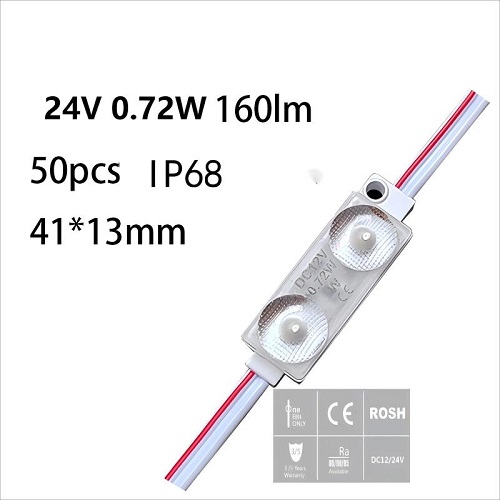

High efficiency 160lm/w Ra98 2 leds/pc Led Module for 100-150mm Illuminated Channel letters and light boxes

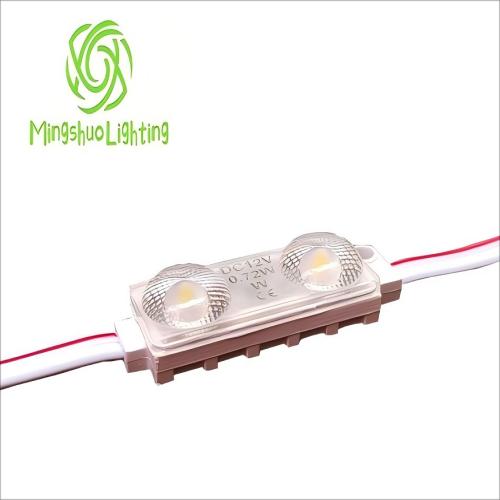

2leds 170degrees module is high efficiency module, 160lm/W. Lifespan is more than 50,000hours, can be operated by dimmable transformer, used as back light, in signage and light box. Indoor and outdoor use. Waterproof degree of this item is IP68.

This modules are made of SMD2835 led chip, 1.5mm thick aluminum PCB board and high transmittance lens. Good quality, low power and high efficiency are the advantages of this module. This is an ultrasonic module, which is a special package with excellent waterproof treatment, and the module is IP68.

Specification:

Features:

1. Low voltage, DC12V/24V;

2. LED module adopts SMD2835,0.75W,  light efficiency is 160lm/W;

3. 0 maintenance cost for light box advertising: ABS+aluminum substrate makes the module heat dissipation faster, the service life is 40% longer than the ordinary model, saving 30% maintenance cost;

4. 360°No dark area: 170 degrees large angle light to eliminate dark areas, so that the light-emitting word front / side equally clear, light box screen brightness uniformity, energy saving 80% than the traditional light box;

5. The lamp bead adopts diffuse reflection light effect design to reduce the light box luminous blinding light spot; Ra98 real restore the color of the advertising screen;

6. Multiple colors to choose from: Warm white (2700-3500k), Positive white (4000-5000k), Cool white (6000-10000k), Red, Orange, Yellow, Green, Blue, Purple, Pink, Lemon Yellow, Ice Blue and Pinkish and more;

7. Module adopts an external constant voltage power supply with high power factor and high conversion efficiency;

8. The module is widely used in signage, 3D letters, indoor light boxes, outdoor light boxes, architectural light boxes, also supports curved/shaped assemblies, complex store signage, large light box arrays.

9. Lightboxes depth is from 10cm to 15cm;

10. Easy to install and store, with 3M self-adhesive tape;

11. Can be used and stored at temperatures from -40 ℃to 60℃, with a service life of more than 50,000 hours;

12. Protection level: outdoor IP68.

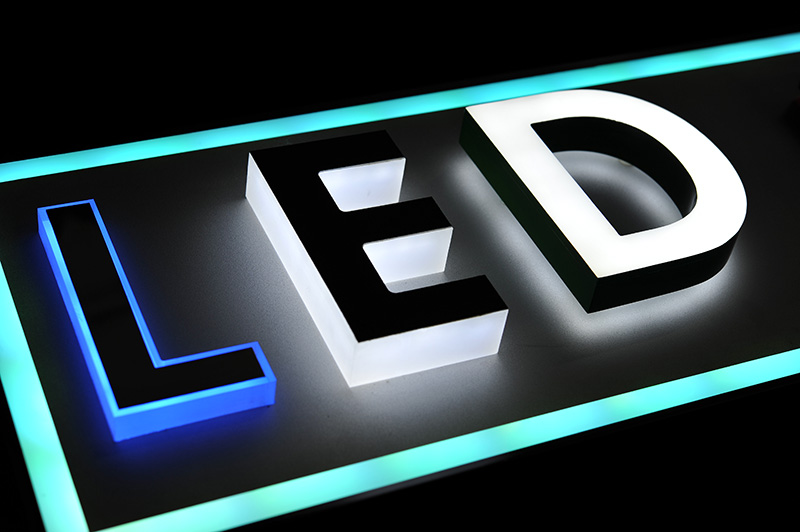

Applications:

FAQ

1.Can I have a sample for test?

Yes, samples are available. We will offer the sample of LED Module light for 20 to 100 pcs, and the sample could provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after our cooperation.

2.How about the lead time?

Usually we had material in stock, regular order delivery time 1--5 days after the order (Pl) paid. Custom products 8--15 days(Custom PCB).

3.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx. It usually takes 3-7 days to arrive. Airline and sea shipping are also optional.

4.Do you accept OEM service?

Yes, we accept OEM order. we will produce the products as your requirement.

5.ls it Ok to print my logo on product and package?

Yes,  it is OK. Before our production, please inform us formally, and confirm the design firstly based on the sample that we send to you.

6.Do you accept the third party inspection?

Yes absolutely we accept.

7.How to precede an order for led strip light?

Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production once the payment received.

Finally, once finish production, we will arrange shipment and send the track Number with no delay.

8.How much tax should I pay for custom when we buy goods from you?

Different country had different import policy: you need to figure out with Custom, We don't have a exact answer about this. but most of country 25% on the invoice value.

9.What after-sale services does your factory offer?

Our factory offers free technical support, and we will provide replacement and refund service if any product problem.
