12V/24V SMD2835 60leds/m S shape Led Strip for Illuminated words and 3D letters light box

This flexible S-shaped LED strip is specially engineered for advertising signage, 3D illuminated characters, and decorative lighting applications. Unlike conventional LED strips that require frequent cutting, bending, and connection points, the unique snake-style structure allows installers to follow complex letter contours, curved edges, and irregular shapes with a smooth, wrinkle-free finish.

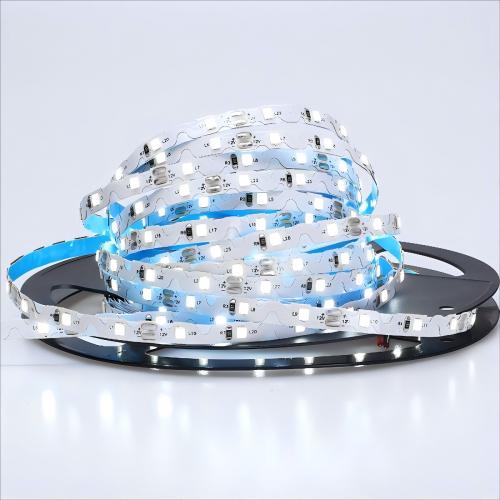

The LED strip uses high-quality SMD2835 LED chips mounted on a double-sided pure copper PCB with premium resistors and 3M adhesive backing. It provides high brightness, low energy consumption, excellent color consistency, and long-term reliability for both indoor and outdoor lighting projects.

Available in multiple densities, including 60 LEDs/m, 120 LEDs/m, and 240 LEDs/m, this LED strip is suitable for sign makers, advertising manufacturers, retail displays, museums, galleries, hospitality decoration, and architectural lighting.

Specification:

Why Choose S Shape LED Strip Light?

1. Low voltage, safe LED strip. DC12V/24V;

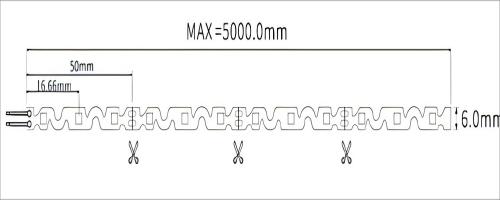

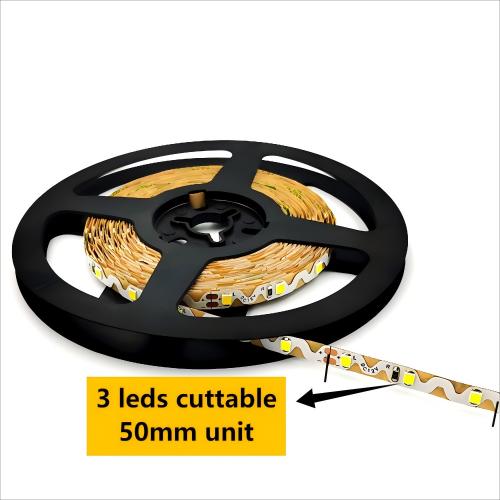

2. Cut length: 3 leds unit, 5cm;6 leds unit,10cm;

3. Ultimate fit, goodbye to wrinkles: Its unique S-shaped structure ensures smooth bending, while the close fit of the metal, acrylic, and resin letters to the contours of the corners contributes to a seamless finish. The arcs are free of wrinkles, ensuring a uniform and light appearance with no dark areas. The characters are clear and sharp, enhancing the overall clarity and professionalism of the text.

4. Efficient installation, save time and labor: It does not require complicated cutting or splicing, and is ready for use with just one roll. The pre-set snap bit design allows for easy embedding in the lettering shell slot, enhancing installation efficiency by more than 50%. This results in significant savings in labor and high cost, leading to a project cycle reduction.

Applications:

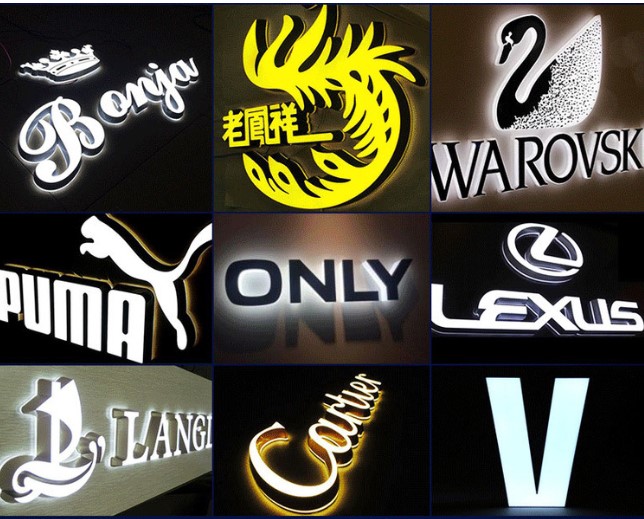

1. Ideal for Mini-luminous characters, infinity luminous characters, resin luminous characters, bracket back-lit, hollow light box, 3D printing characters, stainless steel wrapped characters, super luminous characters, back card crystal luminous characters and so on.

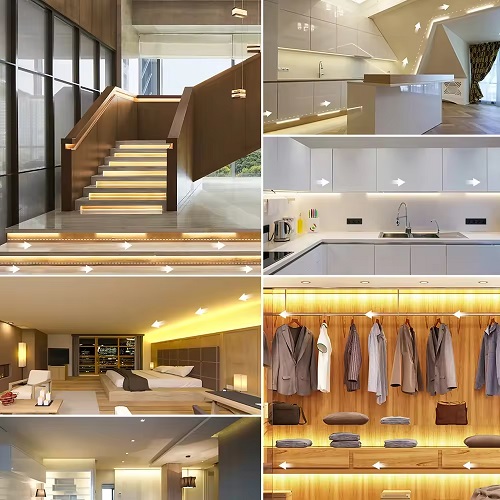

2. Holiday lighting sculpture, decorative figurine, active signs, displays, shop windows

3. And shop windows, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railings, ceiling, or driveway.

Installation Instruction

1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.

2. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.

3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.

4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .

5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.

6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.

7. It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).

Pay attention

1. Pay attention to handling with care;

2. Don’t install the product in corrosion, flammable and explosive places;

3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;

4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving;

5. Ensure correct and reliable connection of all joints;

6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.

7.The LED strip and accessories can't be squeezed or folded;

8. PCB conductive parts can't be damaged when installation；

9. Installation must conform to electrical safety standard. The LED strip can only be installed by Professionals；

10. Ensure power supply transform operating load with transformer；

11. When install on metal or conductor surface, insulation protection need to be provided to the contact area；

12. Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip；

13. When installation, please prevent static electricity；

14. If you have any questions about this product, please consult our salesman.

FAQ

1.Can I have a sample for test?

Yes, samples are available. We will offer the sample of LED strip light for 1 to 5 meters, and the sample could provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after our cooperation.

2.How about the lead time?

Usually we had material in stock, regular order delivery time 1--5 days after the order (Pl) paid. Custom products 8--15 days(Custom PCB).

3.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx. It usually takes 3-7 days to arrive. Airline and sea shipping are also optional.

4.Do you accept OEM service?

Yes, we accept OEM order. we will produce the products as your requirement.

5.ls it Ok to print my logo on product and package?

Yes, it is OK. Before our production, please inform us formally, and confirm the design firstly based on the sample that we send to you.

6.Do you accept the third party inspection?

Yes absolutely we accept.

7.How to precede an order for led strip light?

Firstly let us know your requirements or application.

Secondly we quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly we arrange the production once the payment received.

Finally, once finish production, we will arrange shipment and send the track Number with no delay.

8.How much tax should I pay for custom when we buy goods from you?

Different country had different import policy: you need to figure out with Custom, We don't have a exact answer about this. but most of country 25% on the invoice value.

9.What after-sale services does your factory offer?

Our factory offers free technical support, and we will provide replacement and refund service if any product problem.
