120leds/m Z shape bendable Led strips for Signage lighting and Commercial Lighting
12V/24V SMD2835 OSRAM chip 120leds/m Led Strip for permanent lighting solution to Store and Home Lighting

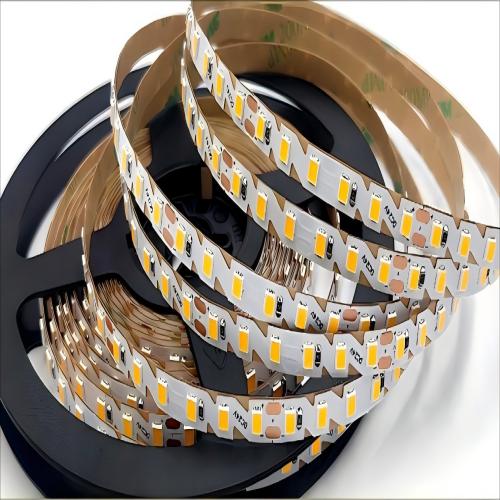

This Z shape strip uses high-quality SMD2835 LED chips mounted on a double-sided pure copper PCB with premium resistors and 3M adhesive backing. It provides high brightness, low energy consumption, excellent color consistency, and long-term reliability for both indoor and outdoor lighting projects.
Upgrade shop and home linear lighting with our premium 12V Z-shape LED strip. CRI>90 and 130lm/W ensure vibrant, wrinkle-free illumination. Designed for effortless installation and long-lasting durability, it's the ultimate choice for professional displays and elegant residential ambiance.

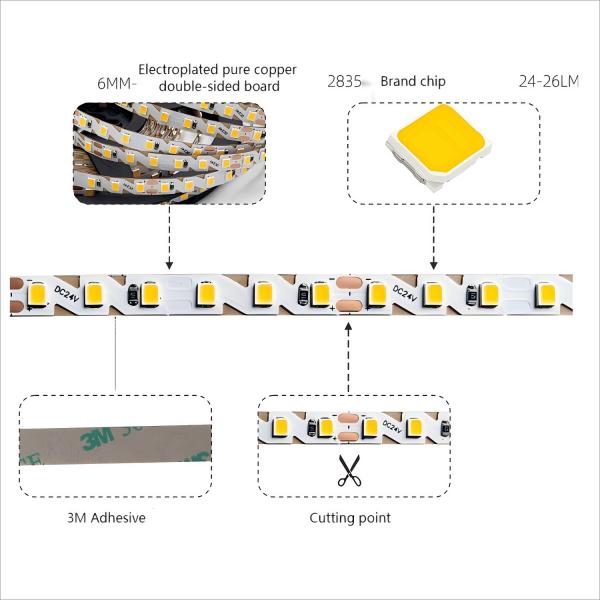

This SMD2835 strip light is composed of double-sided pure copper plating board + led brand chip + brand resistor (UniOhm 161,089 and other models) + 3M double-sided adhesive backing. Available in multiple densities, including 60 LEDs/m, 120 LEDs/m, and 240 LEDs/m, this LED strip is suitable for sign makers, advertising manufacturers, retail displays, museums, galleries, hospitality decoration, and architectural lighting.
Specification:
| Item No. | MS-ZFL2835-120 | MS-ZFL2835-120 |
| PCB Width | 6mm/8mm | 6mm/8mm |
| LED Quantity | 120leds/m | 120leds/m |
| Voltage | DC 12V | DC 24V |
| Wattage | 10W/M | 12W/M |
Luminous Flux(lm) | 30lm/led,1000lm/m | 30lm/led,1200lm/m |
| Color | Warm white,Natural white, Cold white,Red,Orange, Yellow,Lemon yellow,Green, Blue,Ice blue,Purple and Pink | Warm white,Natural white, Cold white,Red,Orange, Yellow,Lemon yellow,Green, Blue,Ice blue,Purple and Pink |
| Cut Length | 3 leds,25mm unit/l led,1cm unit | 6 leds,5cm unit |
| CRI(Ra) | >90 | >90 |
| Angle | 120 | 120 |
| Warranty | 3 Years | 3 Years |
Procurement Advantage Comparison (Data-Driven)
For store owners and interior designers, the choice of lighting directly impacts visual appeal, installation budgets, and after-sales returns. Below is a direct comparative analysis of our S-shape strip versus traditional standard rigid strips:
| Evaluation Metrics | Our S-Shape LED Strip (120LED/m) | Traditional Standard LED Strip |
|---|---|---|
Visual Uniformity (Shop Display/Home Decor) |
|
|
Installation & Labor Cost (ROI focus) | Plug-and-play on a single reel. Pre-set snap-bit slots cut installation time by >50%. No complex soldering required. | Requires manual cutting, complex wire splicing, and heavy on-site labor, driving up project costs significantly. |

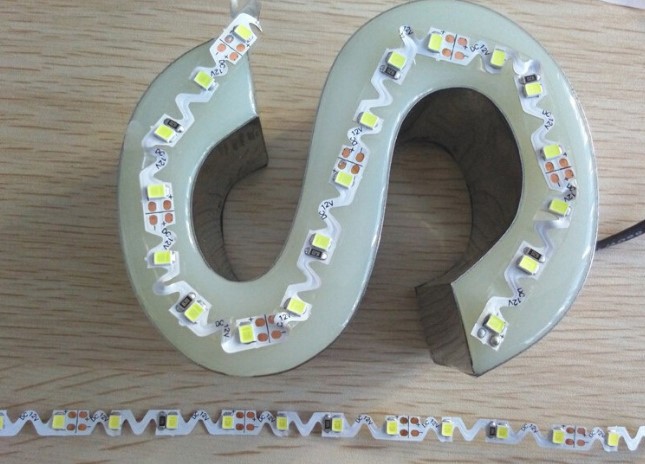

Corner & Lettering Fit (Wrinkle-free) | Unique S-shaped (Z-shaped) design folds perfectly around 90° corners, acrylic letters, and metal channels. No wrinkles, no gaps. | Rigid or straight designs bunch up at corners, creating obvious wrinkles, shadows, and a cheap, unfinished look. |
| Material & Durability (Quality guarantee) | Double-sided pure copper PCB ensures rapid heat dissipation, preventing burnouts and extending lifespan to >50,000 hours. | Standard single-sided copper or aluminum PCB. Prone to overheating, with typical lifespan limited to ~30,000 hours. |
| Energy Efficiency (Operating costs) | Outstanding 100–130 lm/W luminous efficacy. Delivers high brightness while saving up to 30% on electricity bills compared to traditional strips. | Standard 80–90 lm/W efficacy. Lower output for the same wattage, increasing long-term energy expenses. |
| Cutting Flexibility (Customization) | Highly flexible cut units: 1 LED / 1cm or 3 LEDs / 2.5cm. Adapts effortlessly to narrow, intricate furniture or display slots. | Fixed long cut units (e.g., 5cm or 10cm). Wastes materials and limits design flexibility. |
| Environment Adaptability | Stable performance from -30°C to 60°C. Reliable for both indoor home kitchens and outdoor store signage (IP65/IP68 available). | Narrow temperature tolerance; often fails in high-heat or cold outdoor retail environments. |
Low voltage, safe LED strip. DC12V/24V;
Cut length: 3 leds unit, 2.5cm or 1 led unit,1cm;
Usually the index is greater than 90, closer to the original color of the lighting objects, the color is more vivid.
Multiple colors to choose from: Warm white (2700-3500k), Positive white (4000-5000k), Cool white (6000-10000k), Red, Orange, Yellow, Green, Blue, Purple, Pink, Lemon Yellow, Ice Blue and Pinkish and more;
Low power, high luminous efficiency (100lm/w-130lm/w), even illumination, energy saving;
Soft and easy to fold, can be used in various shapes;
Easy to install and store, with 3M self-adhesive tape;
Can be used and stored at temperatures from -30 ℃to 60℃, with a service life of more than 50,000 hours;
Protection level: indoor IP20, outdoor IP65-IP68.

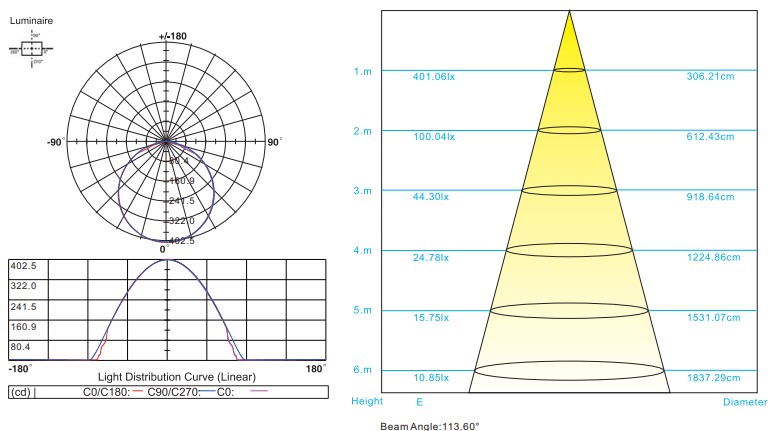

Cutting and Test Report:
Applications:
Ideal for Mini-luminous characters, infinity luminous characters, resin luminous characters, bracket back-lit, hollow light box, 3D printing characters, stainless steel wrapped characters, super luminous characters, back card crystal luminous characters and so on.
2. Holiday lighting sculpture, decorative figurine, active signs, displays, shop windows

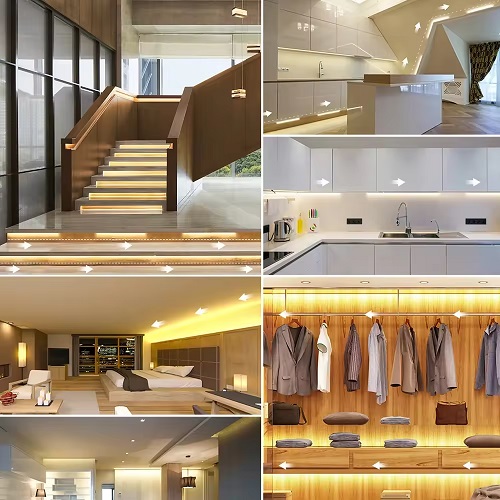

3. And shop windows, bar, nightclub, street, sidewalk, deck, park, porch, staircase, railings, ceiling, or driveway.
Installation Instruction
1. Please choose correct power supply for led strips. The total power of the led strip is about 80% of the power supply, and it cannot be fully loaded to ensure that the power supply works at the correct and stable voltage.
2. We suggest 5 meters/roll for the led strip. If it is over 5 meters length, the brightness of LED will vary greatly. If the customer can accept the case, length can be made over 5 meters/roll.
3. Adhesive tape on the back side of the strip, with its superior adhesive and weather resistance, and can be connected to any transparent glass, metal and plastic surface. But on some certain surfaces, such as cloth, wood, will affect its function and durability. Please test the adhesion of the led strip before installation.
4. Please pay special attention to the minimum bending diameter of the led strip is 60mm, so as to avoid direct or indirect damage to FPC and components on FPC, which may lead to damages of the strip .
5. In order to ensure waterproof and anti-corrosive function , after the power line is screwed into the connector, it is recommended to inject the connector with a single component of silica gel (or neutral glass glue, or waterproof grease) and cover the exposed copper wire of the power line for protection.
6. The non-waterproof led strip shall not be completely exposed for outdoor use. Do not touch or install the strip when it is charged.
7. It is recommended to use switch power supply that has passed relevant safety regulations (with short circuit protection, over voltage protection and over current protection).
Pay attention
1. Pay attention to handling with care;
2. Don’t install the product in corrosion, flammable and explosive places;
3. It is strictly prohibited to use any acidic or alkaline adhesives to fix the product. Neutral adhesives are required;
4. In order to avoid the danger of electric shock, please cut off the power supply during process of installation, debugging and moving;
5. Ensure correct and reliable connection of all joints;
6. The product need anti-corrosion environment, such as, avoiding damp, water drop or other adverse elements.
7.The LED strip and accessories can't be squeezed or folded;
8. PCB conductive parts can't be damaged when installation；
9. Installation must conform to electrical safety standard. The LED strip can only be installed by Professionals；
10. Ensure power supply transform operating load with transformer；
11. When install on metal or conductor surface, insulation protection need to be provided to the contact area；
12. Observe positive and negative polarity, ensure correct connection to avoid damaging LED strip；
13. When installation, please prevent static electricity；
14. If you have any questions about this product, please consult our salesman.
FAQ
1.Can I have a sample for test?
Yes, samples are available. We will offer the sample of LED strip light for 1 to 5 meters, and the sample could provide for customer with free, but the freight will be covered by customer account. The sample freight will be returned to customer account after our cooperation.
2.How about the lead time?
Usually we had material in stock, regular order delivery time 1--5 days after the order (Pl) paid. Custom products 8--15 days(Custom PCB).
3.How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx. It usually takes 3-7 days to arrive. Airline and sea shipping are also optional.
4.Do you accept OEM service?
Yes, we accept OEM order. we will produce the products as your requirement.
5.ls it Ok to print my logo on product and package?
Yes, it is OK. Before our production, please inform us formally, and confirm the design firstly based on the sample that we send to you.
6.Do you accept the third party inspection?
Yes absolutely we accept.
7.How to precede an order for led strip light?
Firstly let us know your requirements or application.
Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly we arrange the production once the payment received.
Finally, once finish production, we will arrange shipment and send the track Number with no delay.
8.How much tax should I pay for custom when we buy goods from you?
Different country had different import policy: you need to figure out with Custom, We don't have a exact answer about this. but most of country 25% on the invoice value.
9.What after-sale services does your factory offer?
Our factory offers free technical support, and we will provide replacement and refund service if any product problem.
