Double-sided lightboxes 12V/24V 3w/led SMD3535 Led Roller Strip for Built-in backdrops, backlit light boxes and flexible film ceiling

The rolling light bar is an LED light source system designed for lighting scenes such as advertising light boxes and display walls. The layout of the edged bars is designed to be symmetrical, with light bars arranged on both the left and right sides of the light box, as well as on the top and bottom. This configuration ensures that light is projected from both sides to the center of the light box, avoiding shadows and improving the uniformity of the lighting. The rolling light bar structure, when combined with the symmetrical layout, provides an efficient and uniform surface light source.

We offer a variety of led edged bar lamp bead chips, including SMD3535, SMD3030, and SMD5730. Some of our lamp beads feature diffuse reflection technology and lenses, which effectively increase the angle of illumination while reducing the intensity of the light.The primary benefit of this type of hard light strip is the integrated counter-attack design and the wide-angle lens configuration. This innovative design allows the light to cover both directions, ensuring uniform lighting without any dark areas. The 2W high-power lamp beads enhance the light effect, and the maximum lighting distance can reach 5 meters. The spacing of the light strips can also be adjusted according to the thickness of the light box. The parallel circuit is designed to prevent voltage drop, facilitate rapid installation, and enhance lighting efficiency.

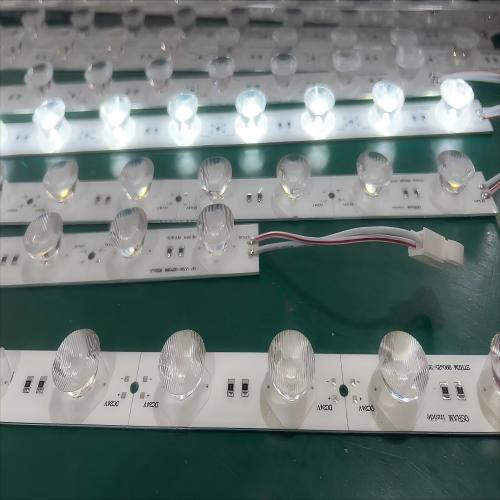

The LED hard light strip utilizes a thickened aluminum substrate and aluminum profile coating, a PMMA lens, and a nano-level refractive layer. It is equipped with high-brightness brand lamp beads (CREE chip, OSRAM chip, Epistar chip, etc.). Additionally, it is equipped with pure copper connecting wire. We offer three options for quantity: 6leds/pc, 12leds/pc, and 20leds/pc.

Specification:

Why choose SMD3535 rigid Bar?

1. Simplify installation and reduce costs

Traditional problem: Each light strip needs to be wired and soldered separately, which is time-consuming and relies on professionals.

Solution: Roller-type parallel design, the power main line connects multiple light strips at a time, and the installation efficiency is more than doubled.

2. Solve uneven lighting and "rib pattern"

Traditional problem: Single-sided light source causes dark areas on the edge of the light box, bright spots in the center, or striped light and shadows (rib pattern).

Solution: Counter-attack design + large-angle lens (45*15), bidirectional coverage of light, and uniform lighting without dark areas.

3. Efficient and simple maintenance

Traditional problem: Faulty light strips need to be cut and re-welded, which is easy to cause oxidation or secondary damage to the line.

Solution: Modular structure with wire breaker, directly pull out the faulty light strip and replace the new module without cutting or welding.

4. Reduce energy consumption and extend life

Traditional problem: Traditional fluorescent tubes have high power consumption (>100W per square meter) and fast light decay.

Solution: LED light strips consume only 60-100W/m2, have a lifespan of more than 50,000 hours, and have a light decay of less than 5%.

Features:

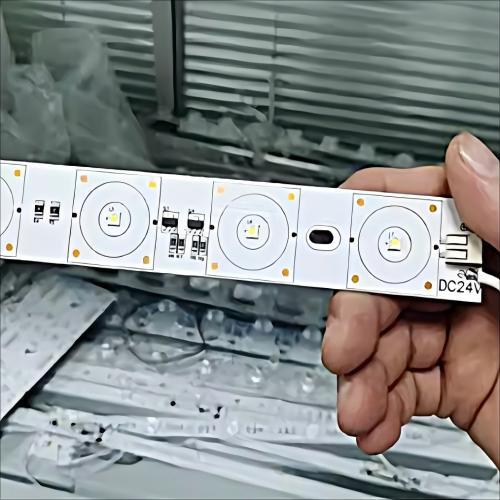

1. Low voltage DC12V/24V,High Power 3W/LED,SMD3030 or SMD3535;

2. Solder-free design (plug-in terminal wire, magnetic interface and crimp connector)

3. Aluminum plate+Aluminum profile dissipate heat quickly;

4. Patent-design connect,wire length is adjustable;

5. Wide-angle lens design:







   (1)The lamp bead features a PMMA optical lens with a nano-diffuse reflection make the lighting distance reach 3-5 meters, suitable for extra-long and extra-large light boxes, uniform lighting, no "rib pattern" phenomenon;

   (2)This innovative feature addresses the challenges of uneven illumination and high energy consumption typically associated with traditional lighting solutions.

   (3) It also prevents glare and eliminates the direct light spot of traditional light beads, ensuring a uniform brightness in advertisements and preventing visual fatigue among audience customers.

6. The roller strip utilizes a "parallel circuit + curtain layout," similar to blinds, offering flexible spacing to accommodate varying thicknesses of the light box.

7. Cut length: 1 led unit(12V); 2 leds unit(24V).





                    (1) Cuttable design allows customers to adjust the length freely according to the size of the actual light box or display area, reducing the waste of edges;




                    (2) the cuttable design make strips does not require complex wiring, and can be fixed directly with magnetic suction and adhesive backing;

                    (3) if part of the roller strip out of the line is damaged, it does not need to be disassembled as a whole to replace it, reducing the cost and time of maintenance.

   This design is designed for irregularly shaped advertising lighting fixtures.

8. Usually the index is greater than 85, closer to the original color of the lighting objects, the color is more vivid.

9. Multiple colors to choose from: Warm white (2700-3500k), Positive white (4000-5000k), Cool white (6000-10000k), Red, Orange, Yellow, Green, Blue, Purple, Pink, Lemon Yellow, Ice Blue and Pinkish and more;

10. Low power, high luminous efficiency (100lm/w-180lm/w), even illumination, energy saving;

11. Easy to install and store, Easy installation by screw, you can replace the failure LED easily.;

12. Can be used and stored at temperatures from -40 ℃to 60℃, with a service life of more than 50,000 hours;

13. Protection level: indoor IP20, outdoor IP65-IP68.

Applications:

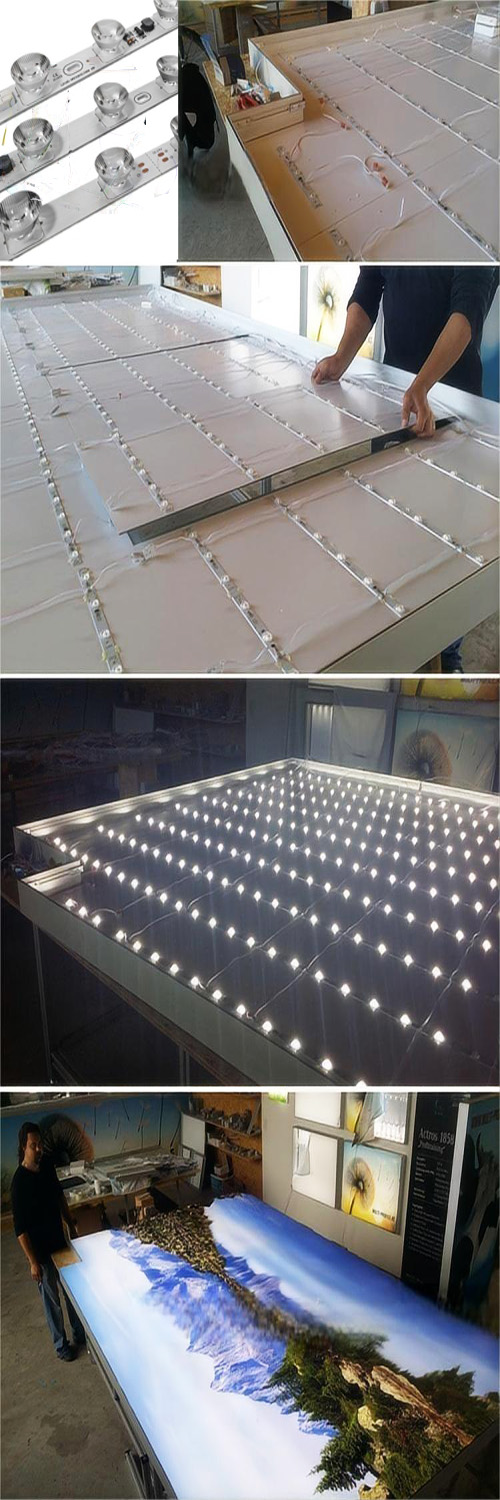

1. Sign light boxes,Double-side signboard Stairway and walkway lighting, Internally lighted billboards, indoor or outdoor sign cabinets;

2. Suitable for a depth of 14~40cm [5.51~15.75 inches] double-sided and 8~20cm [3.15~7.87 inches] single-sided edge lighting light boxes;

3. General lighting, task lighting, household appliances, architectural lighting,Bar Top Lighting;Accent Lighting;Club Lighting;TV back Lighting, villa, restaurant, hotel, meeting room, show room, shop, counter.

Installation:

1. Ensure that the correct DC voltage is supplied and distinguish between positive and negative; in general, the gray (red) wire is positive and the white (black) is negative.

2. Avoid short circuits by following the above connections.

3.It is essential that this product be installed and serviced by a qualified, licensed electrician.

4. Do waterproof treatment and anti-corrosion treatment before wiring.

5. Make sure the connection and installation are good before turning on the light.

6. Do not use chemical solvents in the environment.

7. It is imperative that the LED module and its components not be subjected to mechanical stress.

8. It is imperative that the conductive paths on the circuit board remain undamaged during the assembly process. To ensure safe operation, it is imperative to utilize an electronically stabilized power supply to avert short circuits, overloads, and overheating.

9. Please take a moment to review the standard ESD precautions that should be observed during the installation process.

10.Please verify that the power supply has sufficient capacity to support the total load.
